NAC-2 Core Pack

SKU: 000-13335-001

The NAC-2 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to ten metres (35 feet) in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (eight amps continuous/16 amps peak).

View Key Features

$1,679

Find a dealer

Product details

NAC-2 Autopilot Core Pack: Comprising of the low-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit Ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10 meters (33 feet) in length.

NAC-2 Autopilot Computer
The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (16 Amps peak).

B&G Reflex Sailing algorithms
Plug and Play installation
12/24V input 8A continuous output, 12A peak
Solenoid output capable
3A clutch output
Optional Auto/Standby Switch

Precision-9 Compass
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel. Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of ±2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class. Simple installation with a single NMEA 2000® connection

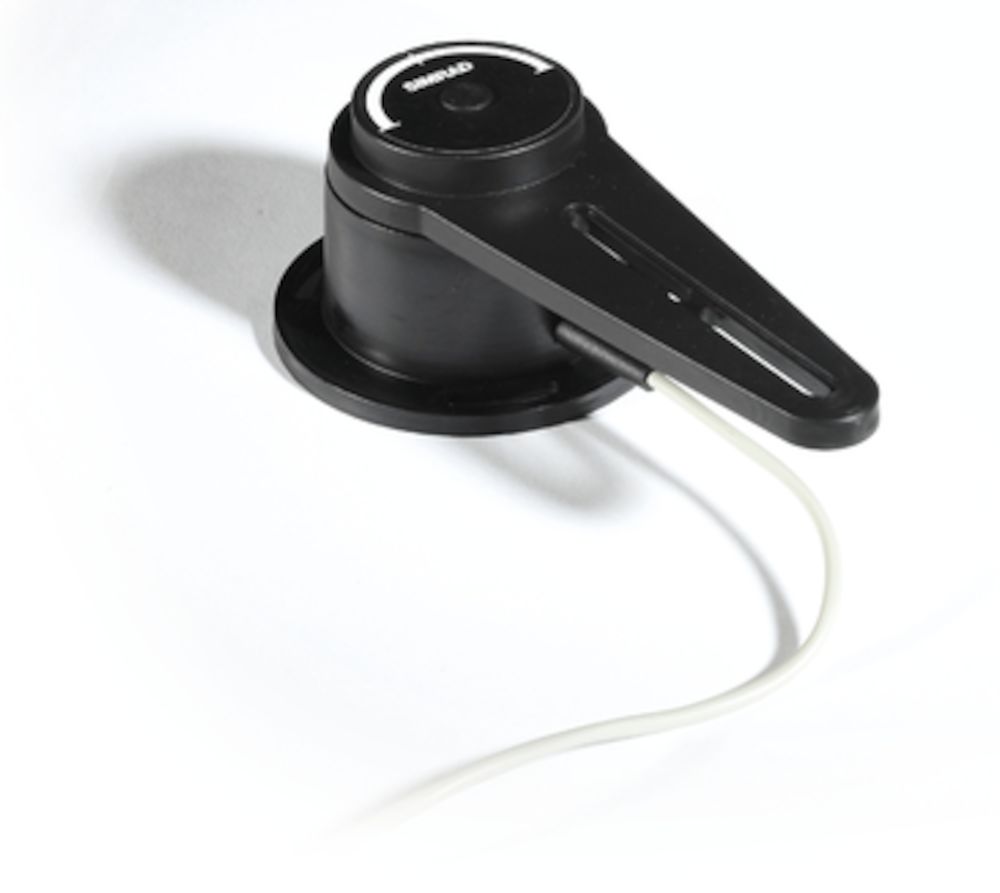

RF25 Rudder Feedback Unit
The RF25 is a medium duty rudder feedback unit with a micro-C interface. The RF25 will attach directly to industry standard micro-C systems for straight-forward installation. +/- 120 Degree Measurement Precise and Accurate; +/- 0.5 Deg Micro-C Connectivity 5.5m attached micro-C Cable

In the box
NAC-2 Course Computer
Precision-9 Compass
RF25 Rudder Feedback Unit
NMEA 2000 Backbone kit
Documentation

Key Features

Reliable autopilot performance based on B&G Reflex steering technology
Recommended for boats up to 10 metres (35 feet) in length
Output of 8 amps continuous, 16 amps peak
Clutch output (3 amps maximum)
Compatible with low -current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
Supports RF25 rudder feedback units
Plug-and-play connectors for easy installation
NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
