Zeus³ Glass Helm 24 Display Only
SKU: 000-14011-001
000-14011-001
The B&G Zeus³ Glass Helm 24 is designed specifically for blue water sailing, multihulls and superyachts. This premium, super-fast, super large-screen, multifunction display sits at the heart of your fully integrated navigation system. The Zeus3 Glass Helm provides easy-to-use touchscreen and remote control options. B&G’s unique sailing features including SailSteer and RacePanel all combine with Radar, charting, sonar and much more. (World Basemap or C-MAP US)
Dedicated Sailing Features for cruising and racing
Take advantage of B&G’s award winning sailing features on Zeus³’s large screen displays to make the most of your time on the water.
SailSteer
Know exactly what’s going on in your surroundings with B&G’s award-winning SailSteer page. One easy-to-read screen gives you all the information you need at a glance - wind, boat speed, tide, heading, course over ground, layline and waypoint information, all on one intuitive data display.
RacePanel
Win more with Race Panel - take advantage of features previously enjoyed only by pro navigators. The start line screen shows a graphical representation of the start with laylines, tide, time and distance to line information always visible. Use the powerful Look Ahead feature to call for a gybe set or sail change long before your competitors have even noticed that the wind has shifted.
Laylines
Optimise your time sailing upwind with B&G’s layline technology. Laylines calculates the best time to tack on an upwind leg, ensuring you tack in the right place every time. Zeus3 Glass Helm calculates the effects of tide on laylines and displays historical wind shift information to give you the information you need to get to the waypoint as quickly as possible.
SailingTime
Plan effectively with SailingTime. Our chartplotters calculate time and distance remaining to a waypoint - even when you’re sailing upwind. See the time remaining on each tack until you reach the waypoint, and identify the quickest way to get to your destination.
Easy to expand your network
Make Zeus³ Glass Helm even more capable by adding to your onboard network, and benefit from:
H5000 and WTP3 control
Network with H5000 and WTP3 instruments to take full control of your on board data. Manage setup and calibration from your Zeus3 Glass Helm displays, and benefit from the accuracy and insights offered by the world’s best sailing instruments.
ForwardScan
Avoid dangerous waters and seabed features with ease by adding ForwardScan, for a real-time two-dimensional view of the seabed in front of your vessel. Navigate into shallow anchorages and poorly charted areas with an easy mind and know what lies ahead with confidence with user-defined alarms and safety depths.
SonicHub
Add a SonicHub to take control of your onboard entertainment from your Zeus3 Glass Helm display. With integrated Bluetooth, stream music from your smartphone or tablet, or listen to music on a USB drive or AM/FM radio. Control everything including volume and individual zones from your chartplotter display.
Add Radar

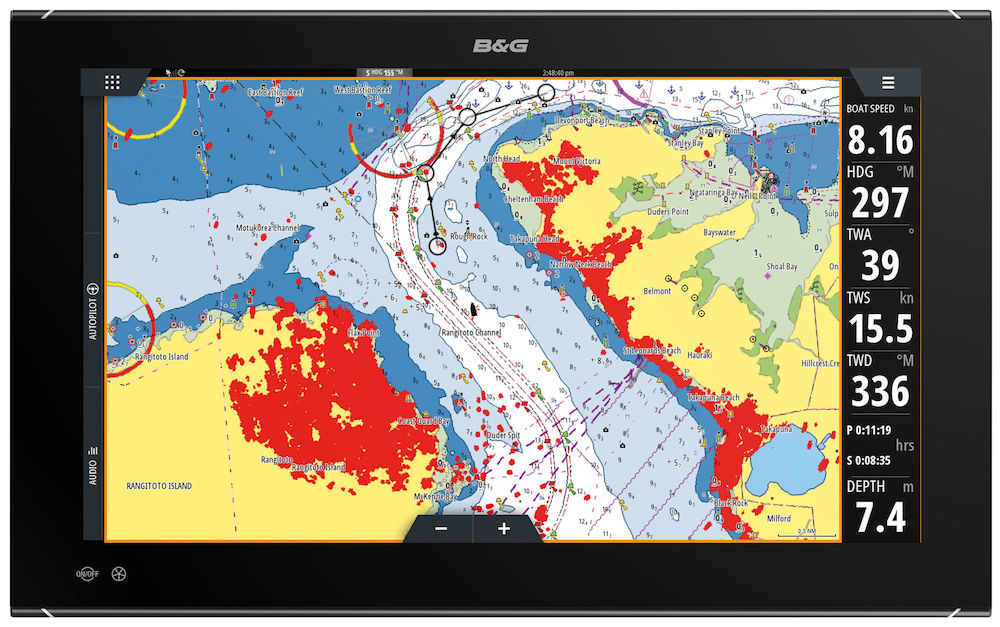

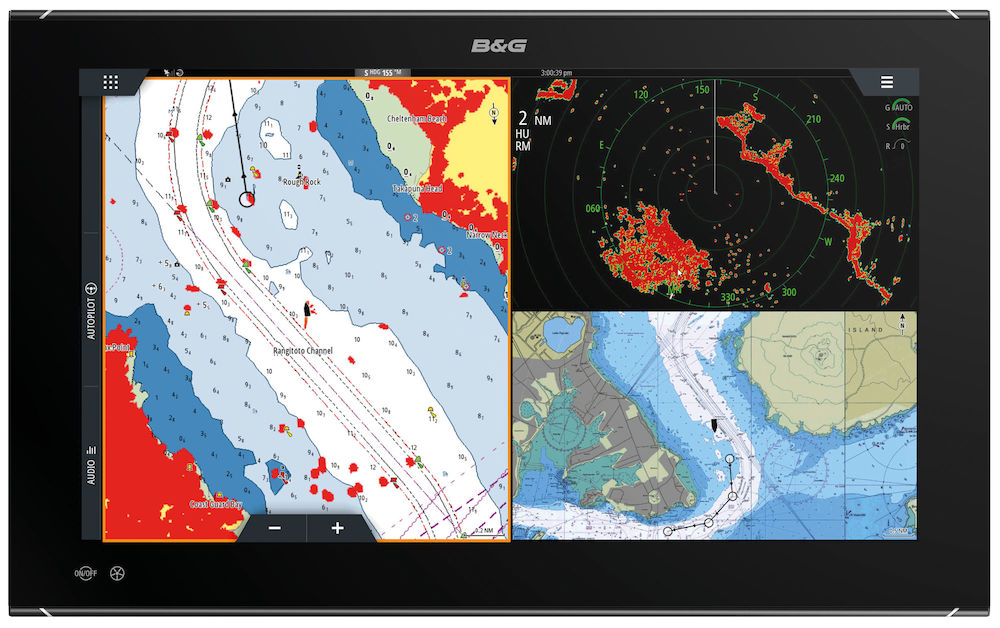

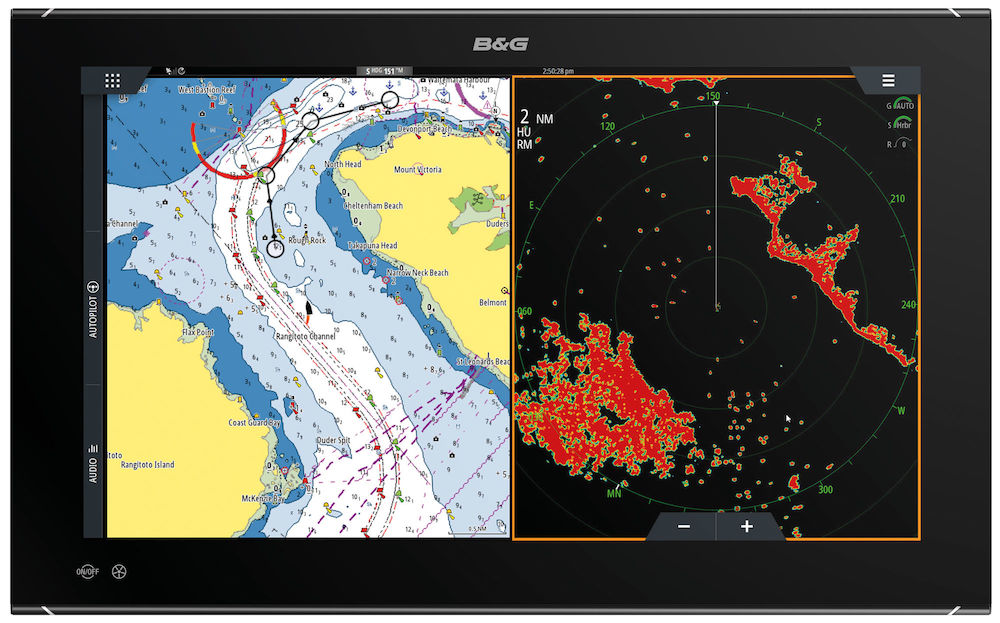

Add our award-winning Radars to guide you through crowded harbours, poor visibility and across busy shipping lanes, or to keep an eye on distant weather and rain when sailing offshore. Zeus3 Glass Helm is compatible with Broadband and HALO radars and allows you to overlay radar data on charts for ultimate peace of mind.
Broadband 4G™ radar
Add Broadband 4G™ radar to your Zeus3 Glass Helm: 4G offers excellent range and performance, detecting targets up to 36 nautical miles away. Take advantage of Dual Range operation to monitor two distance ranges on your display at once. High-speed operation, available at close range is perfect for collision avoidance during close manoeuvres.
HALO Radar
Add our award-winning Halo™ Radar to deliver an unprecedented mix of long and short detection range, with precise target definition and minimal clutter. Quick start-up and maximum ocean-going reliability ensure you have coverage when you need it, while low-power pulsed transmissions mean Halo Radar is even safe to run in anchorages and marinas.
Key Features
- Easy viewing whatever the conditions, with large, low-profile, full glass display with best-in-class screen Ultra-bright, wide-angle Full HD Display
- Plan routes, add waypoints, or adjust course and settings using the easy-to-use touchscreen or Zeus Controller (required)·
- Get more from your sailing with B&G’s dedicated sailing features for cruising or racing- SailSteer, SailingTime, RacePanel, Laylines
- Powerful integration with on board systems including Broadband Radar™, ForwardScan™,instruments, B&G autopilots, entertainment and digital switching systems
- Built-in, powerful processor (no black box required)
- Integrated Wi-Fi for easy access to charts and software updates
- Choose from the widest range of charts to suit your area including C-MAP and Navionics®
- Easy networking and integration with NMEA 2000®
Related Items
-
NMEA 2000 Micro-C Low Loss 4 Way Joiner
-
N2K-PWR-RD Network Power Node
-
TR-120-KIT Network Terminator Kit
-
NMEA 2000 6ft Network Extension Cable
-
RJ45 - Ethernet Adapter Cable
-
MO16/19/24 Cable Retention Bracket
-
Rear mount bracket kit for MO16/19/24 monitors
-

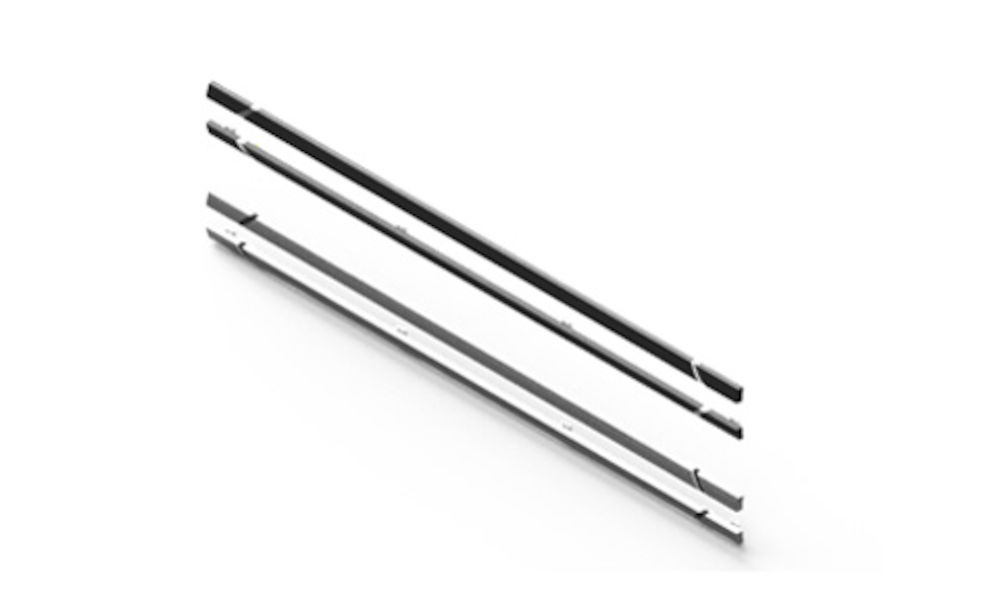

MO24 Bezels
-
B&G Zeus³ Glass Helm 24" Monitor Sun Cover
Specifications
- Display
- Backlight Color
- White
- Display Resolution
- 1920x1080
- Display Size
- 24 inches
- Screen Brightness
- 1200 nits
- Viewing Angles
- 80° top/bottom, 80° left/right
- Connectivity
- Bluetooth
- Internal
- Ethernet Ports
- 4 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)
- Connectivity Wi Fi
- Internal 802.11b/g/n
- N2K PG Ns
- Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
- NMEA 0183 Sentences supported
- Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
- NMEA 2000 Connectivity
- 1 x NMEA 2000 Micro-C port, 1 LEN
- PC Connectivity
- HDMI Video in from a PC
- SD Card Storage
- 1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS
- Video
- 2x composite video (BNC), 1x high definition video (1080p, HDCP 1.4, HDMI-A), 1x high definition video output (1080p, no HDCP, HDMI-A)
- Autopilot
- Manouevres Turn Patterns
- Tack / Gybe, Depth contour tracking
- Steering Modes
- Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
- Approvals
- Approvals Compliance
- CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Electrical
- Power Consumption max
- 80 W +- 4 W
- Recommended Fuse Rating
- 10 A @ 12 V DC
- Supply Voltage
- 10 - 32 V DC
- Environment
- Operating Temperature Range
- -15°C to +55°C (5° F to 131° F)
- Shock Vibration
- CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Storage Temperature Range
- "-20°C to +60°C (4°F to 140°F)
- Waterproofrating
- IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof
- GPS
- Correction
- N/A
- GPS Receiver Channels
- N/A
- Position Accuracy
- N/A
- Time to First Fix
- N/A
- Update rate
- N/A
- MFD
- AIS
- Receive AIS data over NMEA 2000 Or NMEA 0183 (AIS is not bridged to N2K)
- Autopilot
- Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
- Cartography included
- World basemap
- Digital Switching
- BEP C-Zone, Naviop
- GPS
- External GPS required
- Multimedia
- via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
- Sonar Compatibility
- External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required.
- Waypoints, Routes, Tracks
- 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Weather
- SiriusXM (USA only), GRIB, Predict Wind
- Physical
- Compass Safe
- 50 cm (20")
- Dimensions W x H x D
- 625.1 x 386 x 83 mm (24.61 x 15.29 x 3.27“) With bracket: 648.9 x 388.5 x 212.5 mm (25.55 x 15.29 x 8.37“)
- Mounting Type
- Panel or Bracket mount (use optional heavy duty bracket 000-13547-001
- Weight
- 7.8 kg (17.2 lbs.)
- Other
- Interface
- Touch screen, ZG1 or ZG2 controller via NMEA 2000
- Languages
- Standard Language Pack: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocks: Asian Language Pack: English (US), Japanese, Korean, Thai, Chinese. Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish. Russia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, Ukrainian. Middle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
- Warranty Period
- 2 Years
