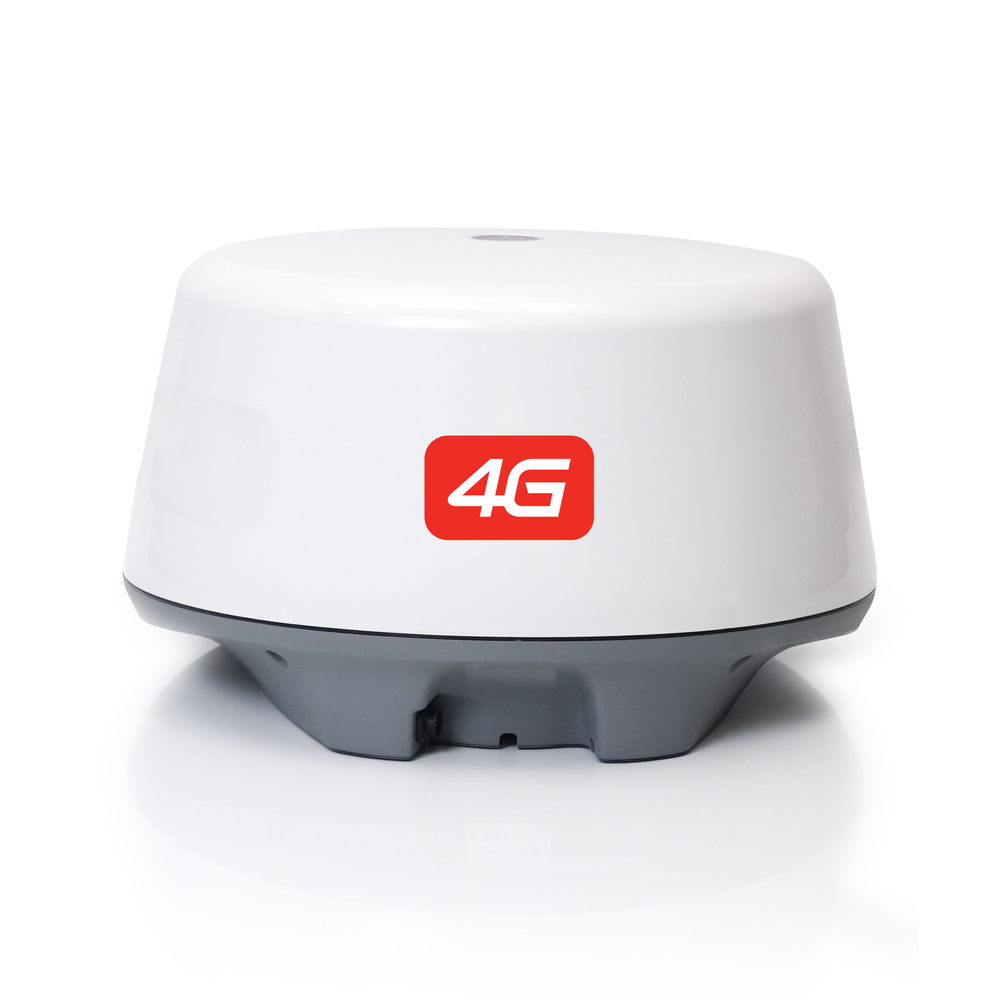

Broadband 4G™ Radar

SKU: 000-10423-001

Broadband 4G™ Radar provides a crystal clear image from the bow of your boat with up to 36nm range. This low power solid state technology offers unrivalled close-range target discrimination while InstantOn™ provides zero warm up time.
View Key Features View Specifications
$1,999
Find a dealer

Product details

Broadband 4G™ Radar provides a crystal clear image from the bow of your boat. This radar has all of the benefits of our Broadband 3G™ Radar but with more advanced features, including beam sharpening for target separation control, Dual Range radar (Zeus2) and increased target detection capabilities. This low power solid state radar gives unrivalled close-range target detection and discrimination, while InstantOn™ provides zero warm up time.

Key Features

    • 36nm Working Range
    • True Dual Range support
    • Customisable Target Separation
    • Low Emissions
    • InstantOn
    • High Target Separation
    • No Main Bang

What's in the box?

  • Broadband 4G Radar
  • Broadband Radar RI10 Interface Box
  • Broadband 3G/4G Scanner Connection Cable
  • DECAL,FMCW,BRAND,B&G
  • LEFLT,PACKING LIST,B&G,4G
  • LABEL,SHIPPER,B&G,4G
  • Ethernet Cable, 6ft

Specifications

Connectivity
Ethernet Ports
RI-10 1 x 100 Mbit 5 pin yellow
N2K PG Ns
127250 - Vessel Heading, 127251 - Rate of Turn, 129025 - Position, Rapid Update, 129026 - COG & SOG, Rapid Update, 129029 - GNSS Position Data, 130818 - Proprietary
NMEA 2000 Connectivity
RI-10, 1 x NMEA 2000 SimNet, 1 LEN
PC Connectivity
Via BBPC SDK
Approvals
Approvals Compliance
CE, FCC (ID: RAY3G4G), IC: 4697A-3G4G
Electrical
Power Consumption typical
Operating: 20W (Typ.) @ 13.8Vdc (21W in dual range mode) Standby: 2.9W (Typ.) @ 13.8Vdc ~ 170mA
Supply Voltage
9V to 31.2Vdc (12/24 Volt systems)
Environment
Humidity
+35° C (95° F), 95% RH
Operating Temperature Range
Operating Temperature: -25° to +55°C (-13° to +130°F)
Waterproofrating
IPX6
Physical
Compass Safe
0.7 m (2.3 ft) Min
Dimensions W x H x D
489 mm x 280 mm (19.3" x 11”)
Mounting Type
Bolts 4 x M8x30 - 304 stainless steel
Weight
7.4 kg (16.31 lbs)
Radar
Beam width
5.2° +/- 10% (-3dB width)
Max Range, scale
36 nm
Max Wind Speed
100 knots
Min Range, scale
50 m (200 ft)
Radar Modes
Head Up, North Up
Radar Technology
Frequency Modulated Continuous Wave (FMCW)
Rotation speed
24/36/48 rpm +/-10% (mode and MFD dependent)
Sart Racon
No
Other
Languages
See Radar Controller
Warranty Period
2 years
