C-MAP Reveal

REVEAL charts bring you the very best of C-MAP, including game-changing Shaded Relief – bringing the world around and beneath you to life in a completely new way.

These world-class charts include all navigation information, including depths and contours, spot soundings, navigation aids, moon, tide, current and marine park data – and more.

Add the layer you want

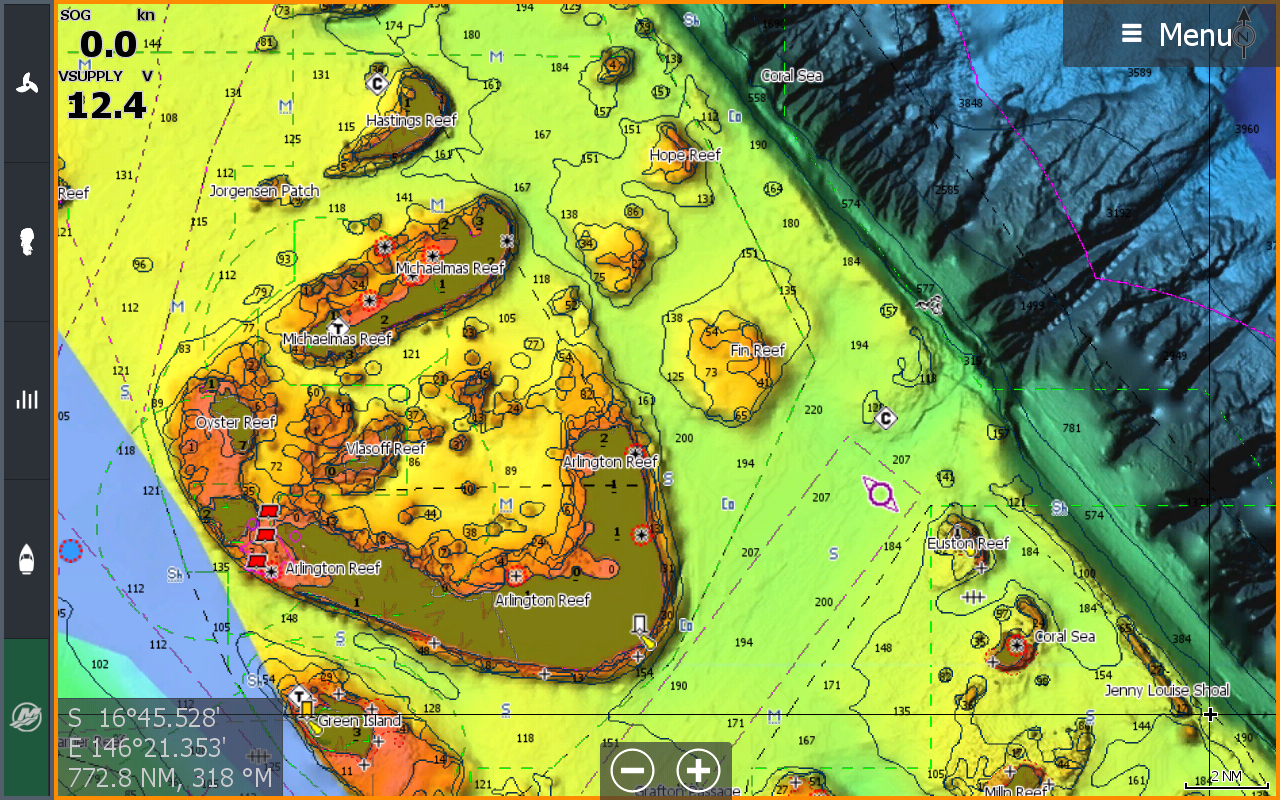

Shaded relief

Attractive three-dimensional views of land elevation and bottom contours bring to life the world around your boat. Visualize underwater pinnacles and topographical landmarks easier than ever.

Satellite imagery

High-resolution satellite imagery provides real-world reference and enhances situational awareness for coastal navigation. An invaluable tool for anglers both in harbors and remote river systems.

Custom-depth shading

With custom depth shading, you can configure color palettes to highlight custom-depth ranges. If you’ve found fish in a certain depth, you can easily identify other similar areas on your chart by highlighting the depth range.

Genesis layer

Unlock previously hidden secrets of your favorite water body. Turning Genesis layer on with your C-MAP chart reveals contour detail as accurate as 1 foot intervals. See humps, ditches and drop offs that went unnoticed before, helping you identify new fish-holding structure to investigate.

Make navigation easy, with C-MAP Easy Routing. Automatically calculate a detailed suggested route between two points, taking into consideration your vessel details and layers of detailed chart information.

Every journey on the water starts and ends at a marina. C-MAP charts feature more detail on marinas than any other charting provider on the market, with over 12,000 marinas in the database. Whether you are looking to identify an area to berth or fuel up, C-MAP Wide and Local charts make it easy.
