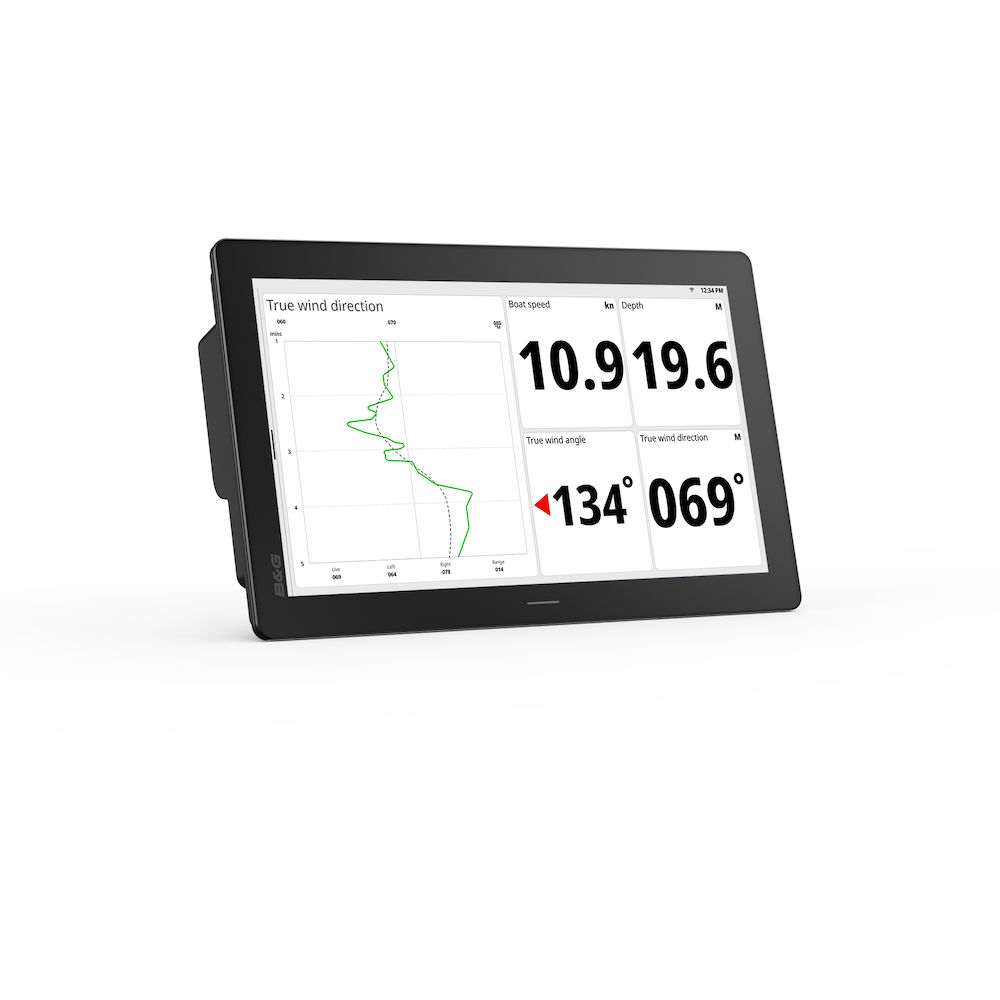

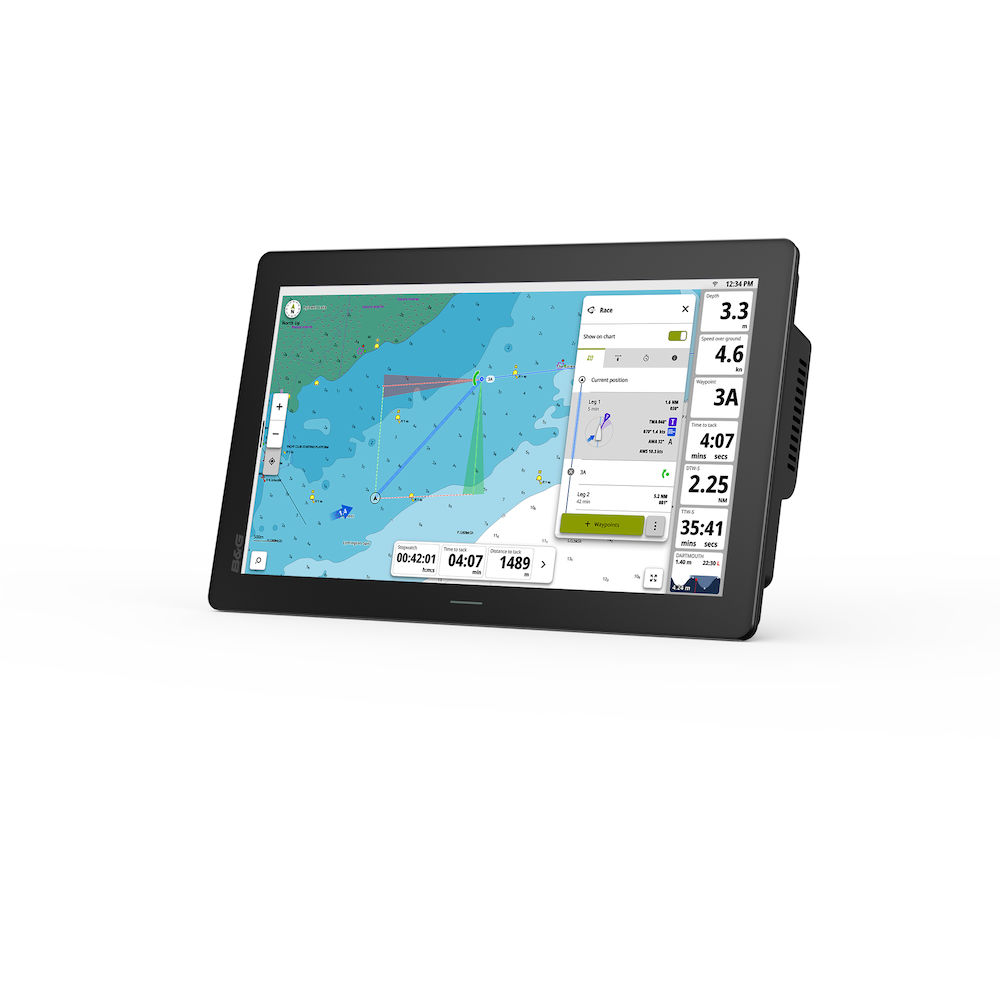

Zeus SRX - 16" Glass Helm Display

SKU: 000-16322-001

Zeus SRX redefines marine luxury for navigation displays. Ultra-premium, glass-to-edge display designed exclusively for the world’s most commanding yachts. With a reimagined operating system, powerful 8-core processor, and seamless integration across every onboard system, Zeus SRX delivers performance with timeless elegance—crafted for those who recognize true refinement at the helm.
View Key Features View Specifications
£7,333
Find a dealer

Designed for the discerning

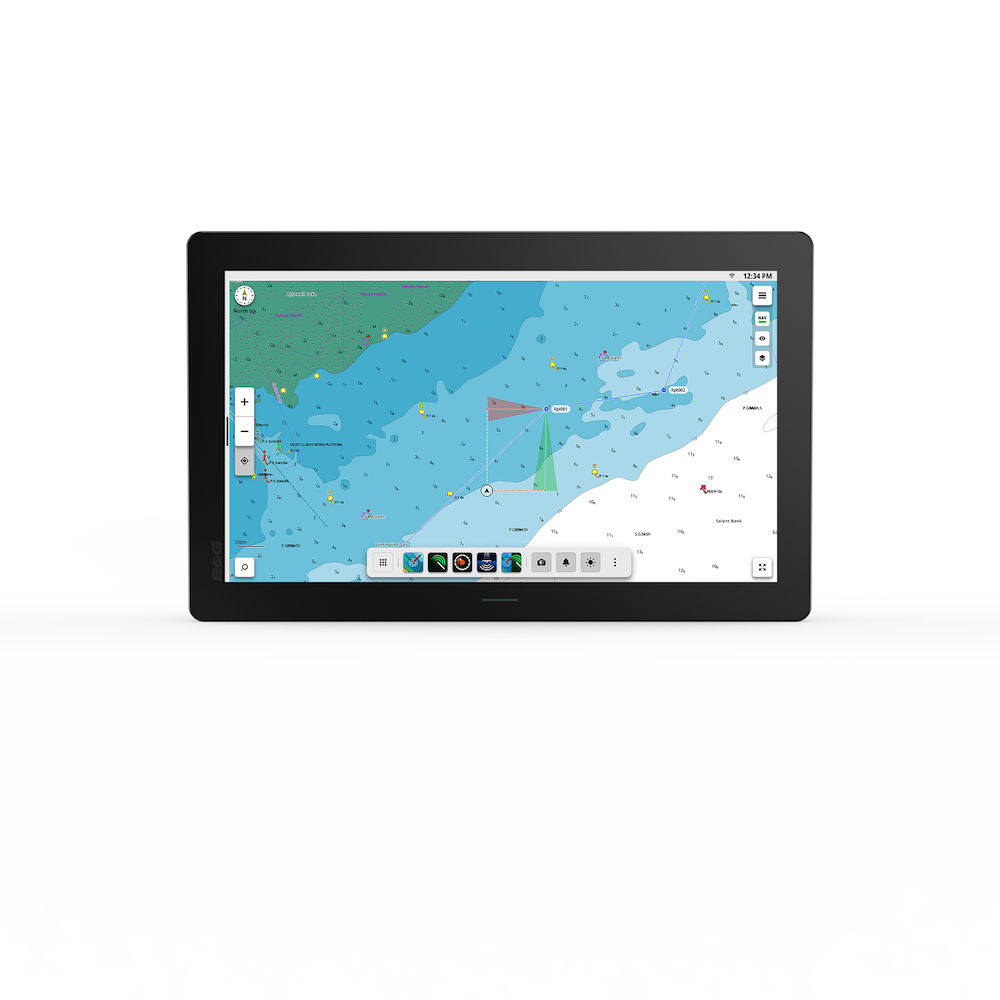

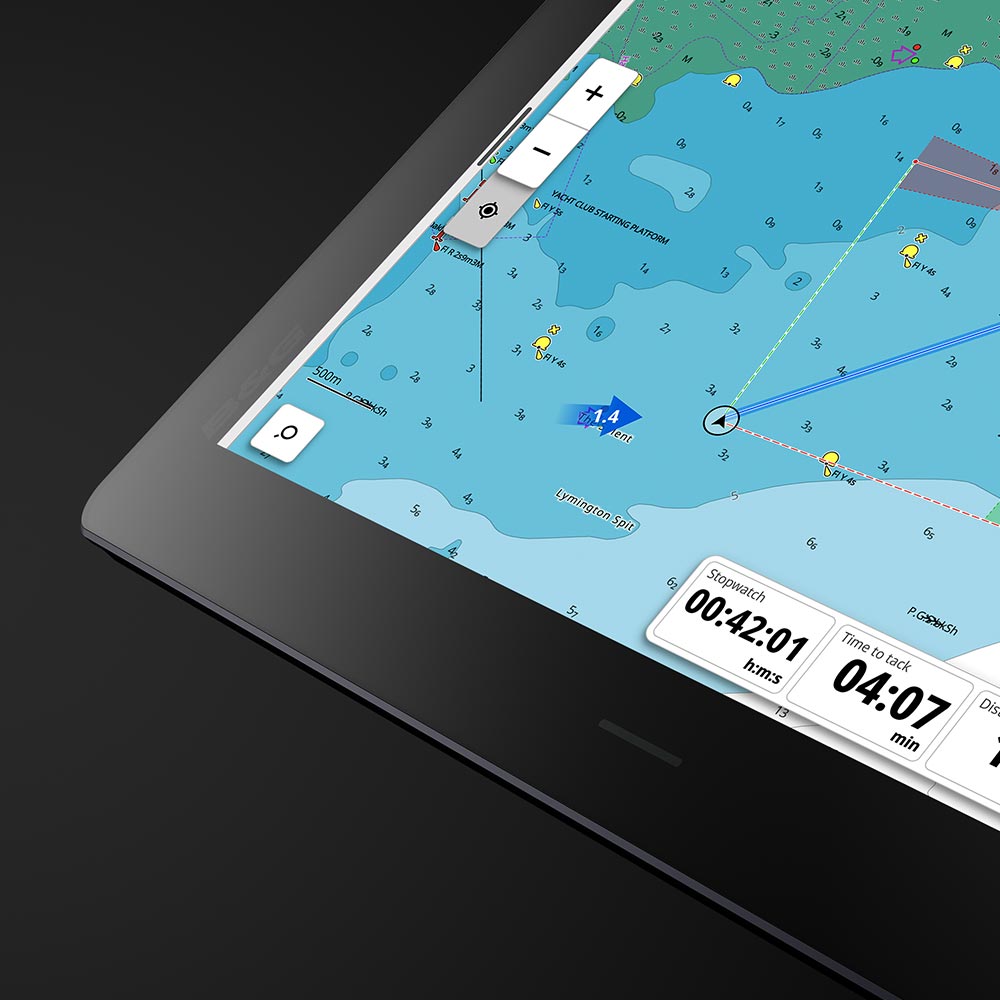

Zeus SRX redefines the standard for luxury sailing displays, crafted for the world’s most prestigious yachts and the discerning owners who helm them. Available in 16" and 22", its glass-to-edge FHD touchscreen delivers stunning clarity and a seamless fit at the helm.

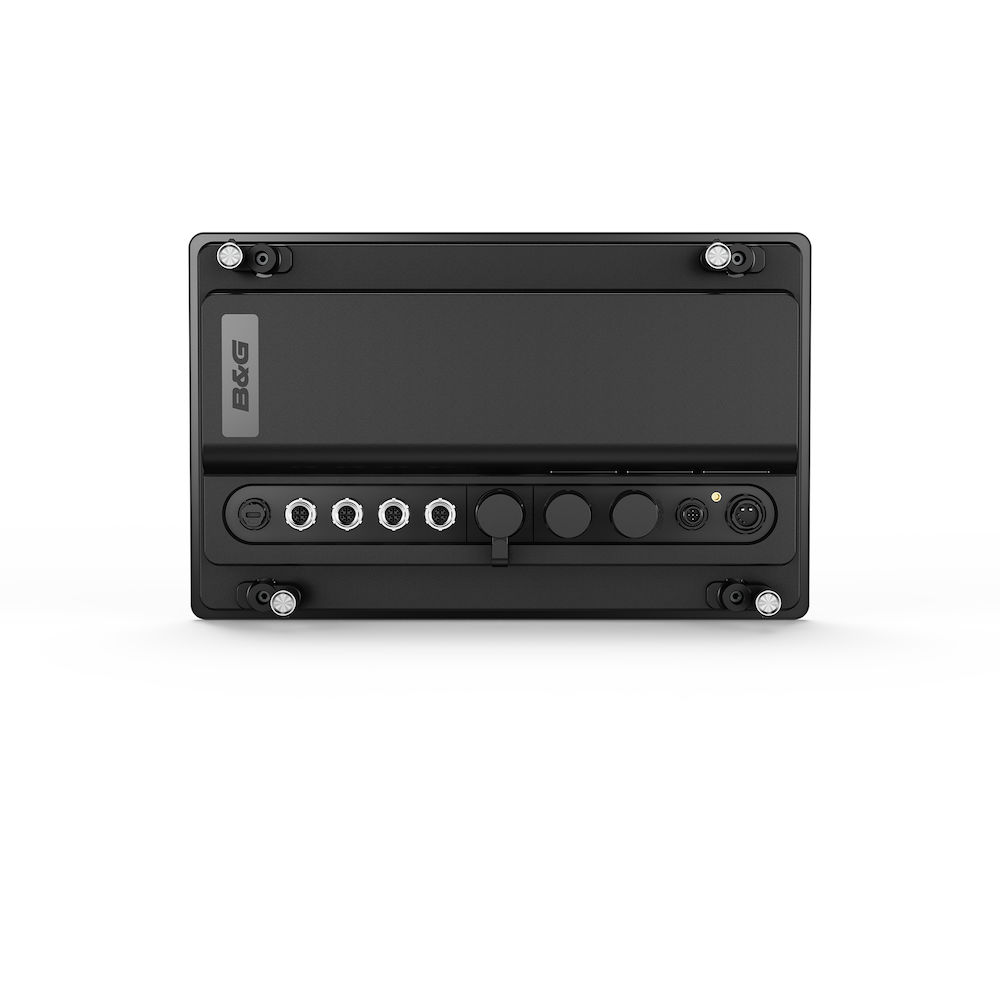

A new rear mount preserves the sleek, modern aesthetic. More than a navigation system—it's a statement of refinement and design.


Speed with simplicity

Powered by our NEON™ OS and an 8-core processor, Zeus SRX combines speed with simplicity. A redesigned activity bar organizes apps and tools in one place while maximizing screen space, and quick access buttons bring overlays, layers, and navigation instantly to the forefront.

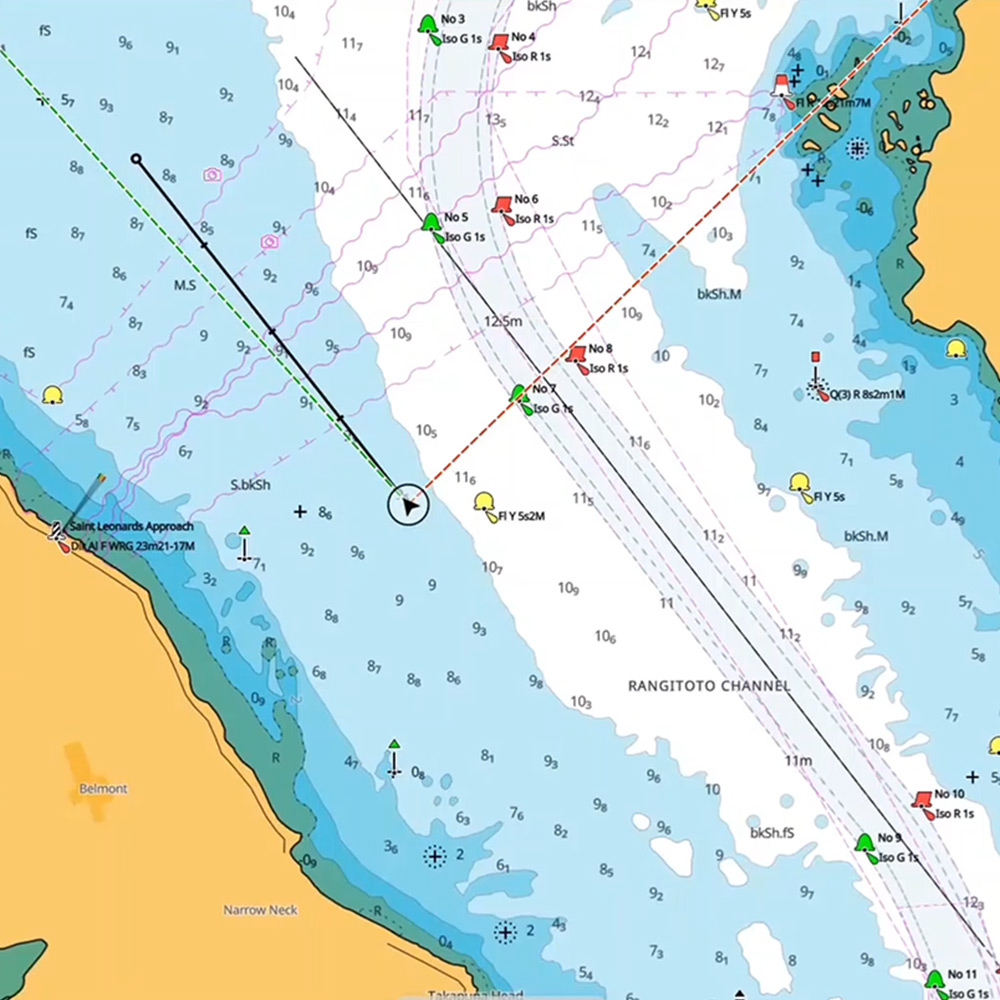

Faster boot times, instant chart redraw, and fluid app transitions make every interaction effortless, with dedicated modes for cruising, racing, and anchoring—plus the award-winning sailing features trusted by the world’s best sailors. 

Your Yacht, Unified

Designed to unify the vessel, Zeus SRX integrates seamlessly with B&G instruments, radar, and wind sensors, as well as CZONE Digital Switching.

Four-way IP video support, HD video in and out, and optional audio keep you connected inside and out. With Zeus SRX, power, elegance, and total integration converge at the helm. 


Key Features

  • Full High definition SolarMAX™ IPS touchscreen, viewable from all angles, even with polarised glasses
  • Waterproof design with active cooling for improved performance in high ambient temperatures
  • Easy modes for Cruising, Racing and Anchoring
  • Award-winning sailing features like SailSteer™, LayLines, Routes and StartLine
  • Compatible with C-MAP® DISCOVER® X and REVEAL® X charts
  • B&G® App integration with 12 months premium app subscription when registering a C-MAP® X Chart.*
    *Mirroring and Control is currently not available on B&G Zeus SRX
  • Stay safe on the water with C-MAP® powered Safety Alerts
  • Full integration with HALO® radars, B&G® Sailing Processors, Autopilots, Triton2 and Nemesis® instruments, wind sensors and more...
  • Wi-Fi 5, Gigabit Ethernet & NMEA 2000® networking
  • Support for up to four IP video cameras
  • Set-up Wizard to get you up and running quickly.

Specifications

Display
Backlight Color
White
Display Resolution
1920 x 1080 px
Display Size
16 inches
Screen Brightness
1200 nits
Viewing Angles
80° top / bottom, 80° left / right. (typical values at contrast ratio = 10)
Connectivity
Ethernet Ports
4 ports (X-Coded M12 GbE)
Connectivity Wi Fi
Wi-Fi 5, 5.0 and 2.4GHz Compatible
N2K PG Ns
Receive only59392 ISO Acknowledgement59904 ISO Request60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.65240 ISO Commanded Address60928 ISO Address Claim126208 ISO Command Group Function126992 System Time126996 Product Info126998 Configuration Information127233 Man Overboard Notification (MOB)127237 Heading/Track Control127245 Rudder127250 Vessel Heading127251 Rate of Turn127252 Heave127257 Attitude127258 Magnetic Variation127488 Engine Parameters, Rapid Update127489 Engine Parameters, Dynamic127493 Transmission Parameters, Dynamic127500 Load Controller Connection State / Control127501 Binary Status Report127503 AC input status127504 AC Output Status127505 Fluid Level127506 DC Detailed Status127507 Charger Status127508 Battery Status127509 Inverter Status128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129033 Time & Date129038 AIS Class A Position Report129039 AIS Class B Position Report129040 AIS Class B Extended Position Report129041 AIS aids to Navigation129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 AIS Class B Extended Position Report129545 GNSS RAIM Output129549 DGNSS Corrections129551 GNSS Differential Correction Receiver Signal129793 AIS UTC and Date Report129794 AIS aids to Navigation129798 AIS SAR Aircraft Position Report129801 Cross Track Error129802 AIS Safety Related Broadcast Message129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 GNSS Sats in View129794 AIS Class A Static and Voyage Related Data129801 AIS Addressed Safety Related Message129802 AIS Safety Related Broadcast Message129808 DSC Call Information129809 AIS Class B “CS” Static Data Report, Part A129810 AIS Class B “CS” Static Data Report, Part B130060 Label130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130313 Humidity130314 Actual Pressure130316 Temperature, Extended Range130569 Entertainment - Current File and Status130570 Entertainment - Library Data File130571 Entertainment - Library Data Group130572 Entertainment - Library Data Search130573 Entertainment - Supported Source Data130574 Entertainment - Supported Zone Data130576 Small Craft Status130577 Direction Data130578 Vessel Speed Components130579 Entertainment - System Configuration Status130580 Entertainment - System Configuration Status130581 Entertainment - Zone Configuration Status130582 Entertainment - Zone Volume Status130583 Entertainment - Available Audio EQ Presets130584 Entertainment - Bluetooth Devices130585 Entertainment - Bluetooth Source StatusTransmit60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.126208 ISO Command Group Function126992 System Time126993 Heartbeat126996 Product Info127237 Heading/Track Control127250 Vessel Heading127258 Magnetic Variation127502 Switch Bank Control128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129283 Cross Track Error129285 Navigation - Route/WP Information129284 Navigation Data129285 Route/Waypoint Data129539 GNSS DOPs129540 GNSS Sats in View130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130577 Direction Data130578 Vessel Speed Components
NMEA 2000 Connectivity
1 x NMEA 2000® Micro-C port, 1 LEN
PC Connectivity
No
SD Card Storage
2x microSD®, Class 10 or higher. Up to 256GB, 1 x USB port. Formats: FAT 32, EXT4, ExFAT or NTFS
Video
Video In port (up to 1920 x 1080P), Video out port (up to 1920 x 1080P). Video limited distribution to other NSO® 4 units via Ethernet. Cameras: IPCAM-1, FLIR® 232/300 series. ONVIF IP Cameras
Autopilot
Manouevres Turn Patterns
U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
Steering Modes
Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav
Electrical
Power Consumption max
33 W
Recommended Fuse Rating
5 A
Supply Voltage
12/24 V DC (10 - 31.2 V DC min - max)
Environment
Operating Temperature Range
-15°C to 55°C (5°F to 131°F)
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
Waterproofrating
IPX6 and IPX7
MFD
AIS
Receive AIS data over NMEA 2000®
Autopilot
NAC-1, NAC-2, NAC3, NAC-D
Cartography included
World wide basemap (not for navigation).Detailed chart card required
GPS
External GPS antenna required
Internal Storage
128 GB, > 64 GB User Data
Multimedia
Via Video In port
Sonar Compatibility
Network Sonar modules S3100, S5100. Transducers connected to NSS 4, NSX over Ethernet
Waypoints, Routes, Tracks
10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
Weather
Sirius XM via WM4 module (USA only)
Physical
Compass Safe
65 cm (2.13 ft) No Suncover
Dimensions W x H x D
391 mm (15.4 in) x 243.95 mm (9.6 in) x 78.79 mm (3.10 in)
Weight
4.23 Kg (9.23 lbs)
Other
Interface
Full touchscreen, Optional keypad (OP55 wired controller)
Languages
-Afrikaans-Bulgarian-Chinese (中文)-Chinese Simplified (中文)-Croatian (Hrvatski)-Czech-Danish (Dansk)-Dutch (Nederlands)-English (English)-Estonian (Eesti)-Finnish (Suomi )-French (Français)-German (Deutsch)-Greek (ελληνικά)-Hungarian-Icelandic (Islenska)-Italian (Italiano)-Japanese (日本語)-Korean (한국어)-Latvian (Latviešu )-Lithuanian (Lietuvių)-Malay-Norwegian (Norsk)-Polish (Polski)-Portuguese (Português)-Russian-Slovak-Spanish (Español)-Swedish (Svenska)-Thai-Turkish (Türkçe)-Ukrainian
Warranty Period
2 Years
